multifunctional robot "UP"
UP is a product of RoboPath Co., Ltd.
The world's first multifunctional service robot

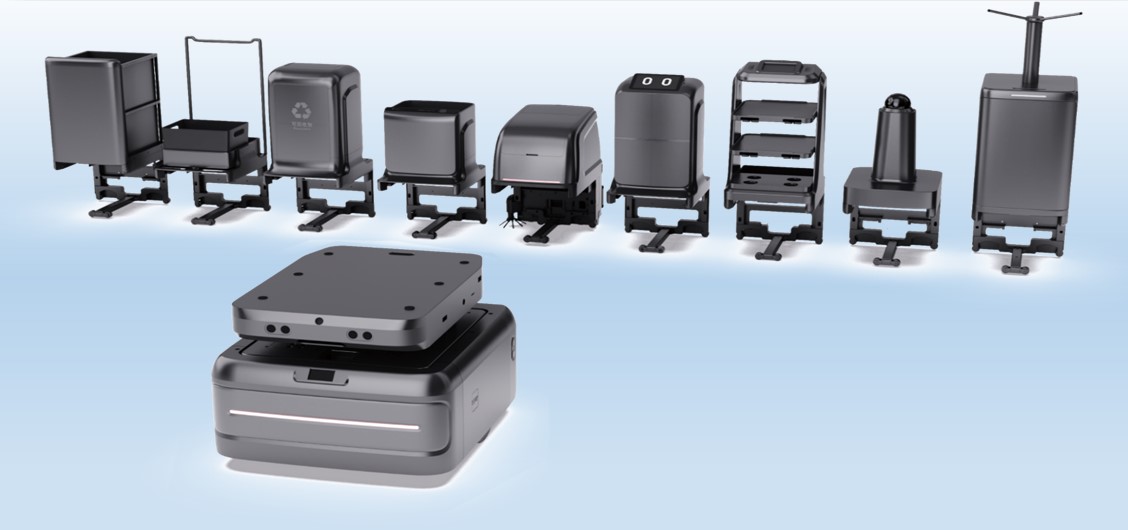

- UP can perform multiple tasks by automatically combining multiple units of the robot body.

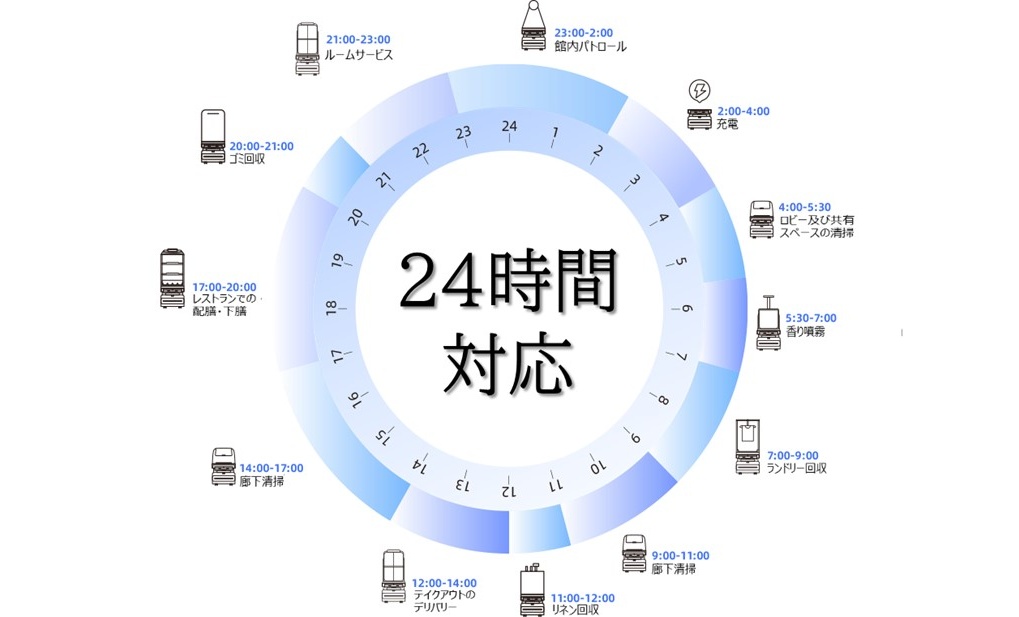

- It can be used for delivery, cleaning, and food service depending on the time of day, enabling effective use of the robot 24 hours a day.
- The upper unit is customizable.
- It can be retrofitted to existing elevators from any manufacturer.
- The operation is simple, so anyone can use it once they learn how.
- The robot can be summoned remotely, allowing for flexible use.
- It can handle slopes (up to 12°) and steps (up to 2 cm) with powerful yet safe movement.
☆Full utilization of robots

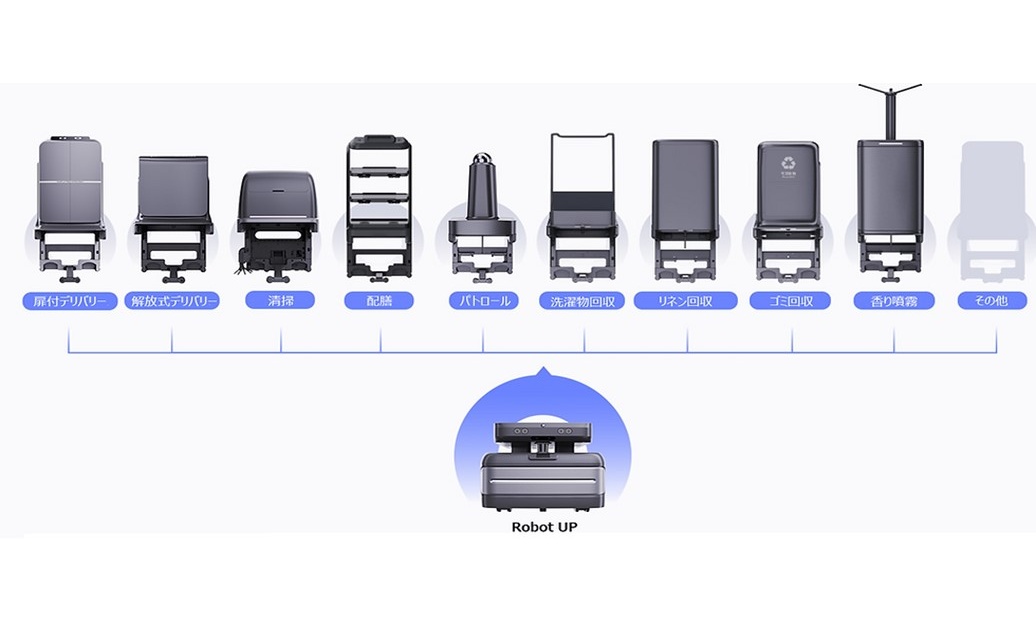

☆Expanded variety

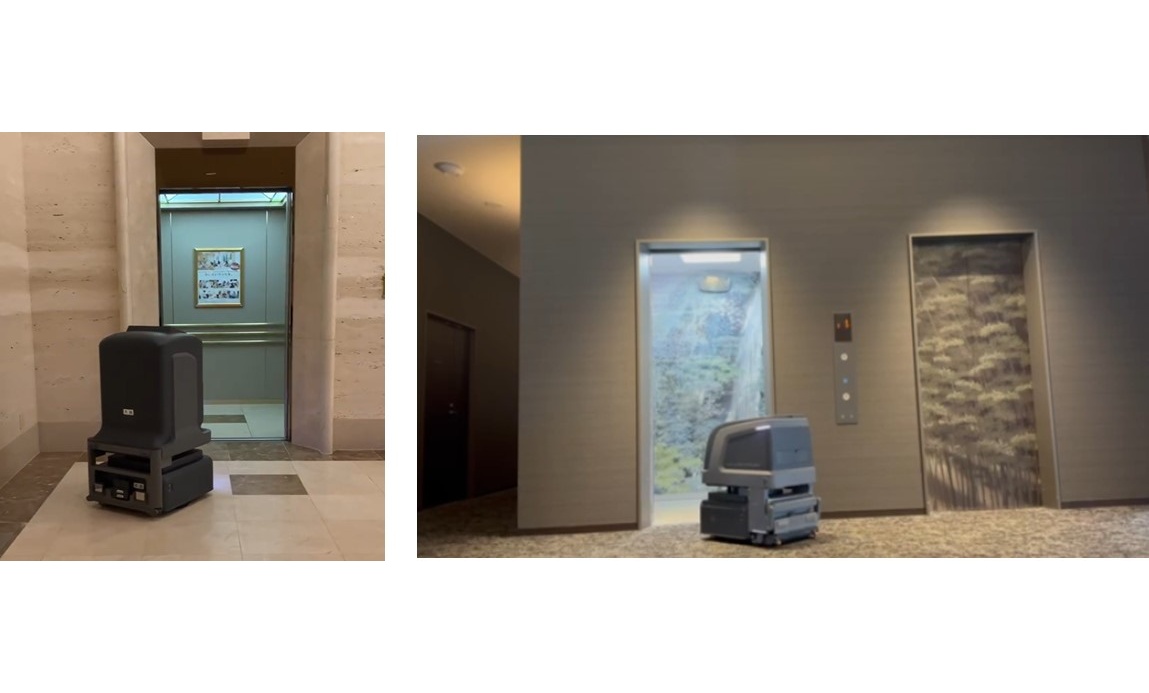

☆Elevator integration, cleaning robots can also ride elevators

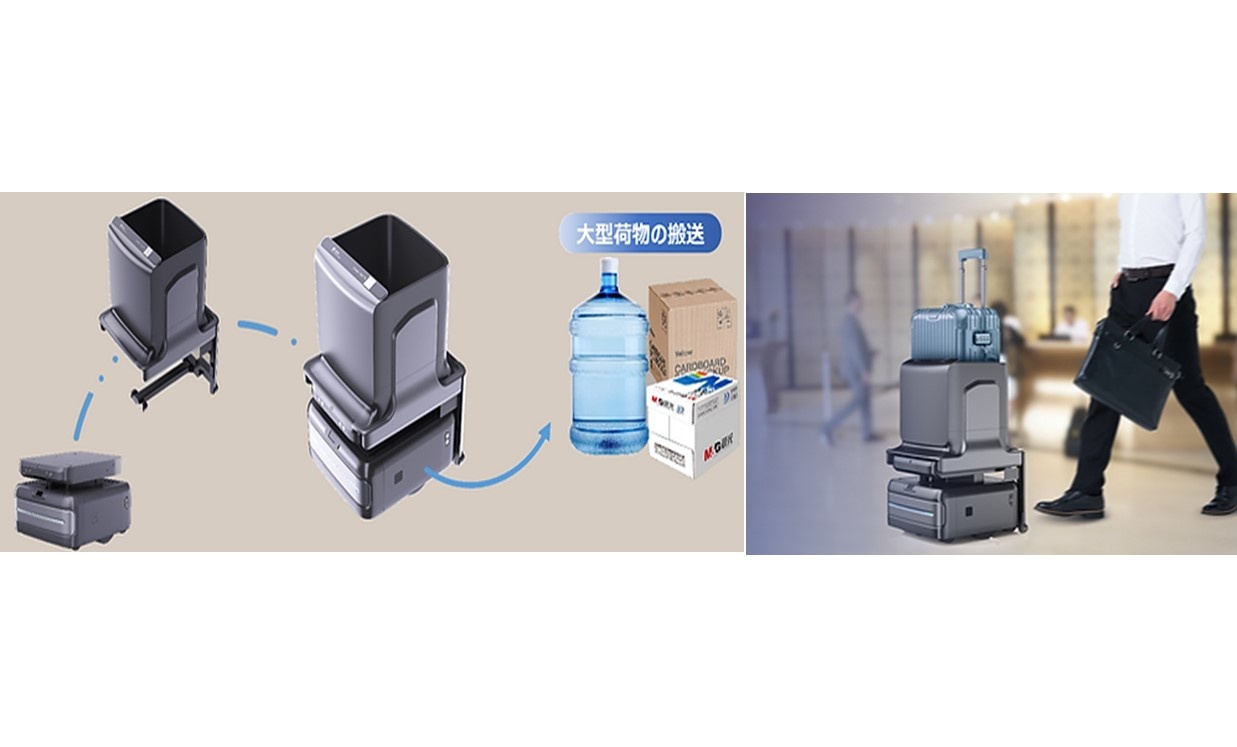

☆Transportation of large items

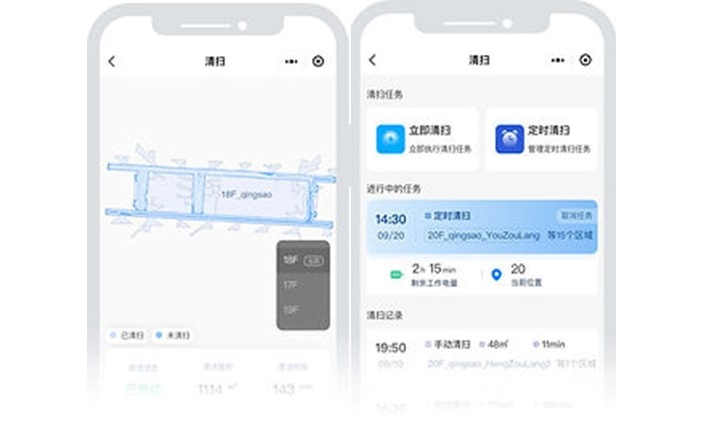

☆Remote control, location confirmation
Product Specifications Robot UP
The main body of the multifunctional robot UP. It is equipped with a drive unit and a communication unit.
●Length: 450 mm
●Depth: 535 mm
●Height: 355 mm
●Weight: 60 kg
●Continuous operating time: 12 hours
●Charging time: 3–4 hours
●Travel speed: 0.4–1.2 m/s
●Lifting capacity: 80 kg
●Minimum passage width: 55 cm
●Supported incline angle: 12°
●Maximum obstacle height: 2 cm or less
●Maximum gap width: 4 cm or less
●Communication: SIM, WiFi
●Supported languages: Japanese, English, Chinese
●Depth: 535 mm
●Height: 355 mm
●Weight: 60 kg
●Continuous operating time: 12 hours
●Charging time: 3–4 hours
●Travel speed: 0.4–1.2 m/s
●Lifting capacity: 80 kg
●Minimum passage width: 55 cm
●Supported incline angle: 12°
●Maximum obstacle height: 2 cm or less
●Maximum gap width: 4 cm or less
●Communication: SIM, WiFi
●Supported languages: Japanese, English, Chinese

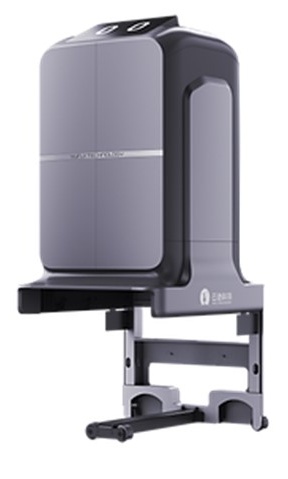

Product Specifications Delivery Robot with Door
The sealed delivery unit of the multifunctional robot UP. It docks with the UP main unit and moves freely in all directions to solve the problem of labor shortages.
●Length: 450 mm
●Depth: 540 mm
●Height: 970 mm
●Functions: Delivery, guidance, etc.
●Continuous operating time: 8 hours
●Charging time: 3–4 hours
●Maximum load capacity: 10kg on upper shelf, 10kg on lower shelf
●Storage space: 50L
Upper compartment: 312×320×250mm (25L)
Lower compartment: 312×320×250mm (25L)
●Supported languages: Japanese, English, Chinese
●Depth: 540 mm
●Height: 970 mm
●Functions: Delivery, guidance, etc.
●Continuous operating time: 8 hours
●Charging time: 3–4 hours
●Maximum load capacity: 10kg on upper shelf, 10kg on lower shelf
●Storage space: 50L
Upper compartment: 312×320×250mm (25L)
Lower compartment: 312×320×250mm (25L)
●Supported languages: Japanese, English, Chinese

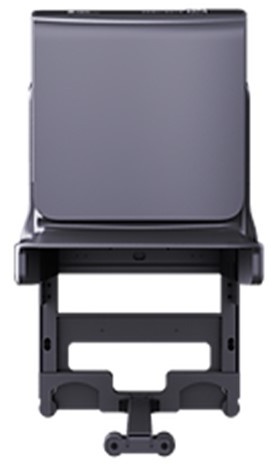

Product Specifications Open Delivery Robot
Multifunctional robot UP's unlockable delivery unit. Enables low-cost, large-capacity transport. Delivery begins simply by scanning a QR code and specifying the location.
●Length: 450 mm
●Depth: 540 mm
●Height: 800 mm
●Function: Delivery of large packages, etc.
●Continuous operating time: Continuous
●Charging time: No charging required
●Maximum load capacity: 40kg
●Storage space: 383×334×350mm
●Depth: 540 mm
●Height: 800 mm
●Function: Delivery of large packages, etc.
●Continuous operating time: Continuous
●Charging time: No charging required
●Maximum load capacity: 40kg
●Storage space: 383×334×350mm
